Drive Testing Device

Drive Testing Device Icon

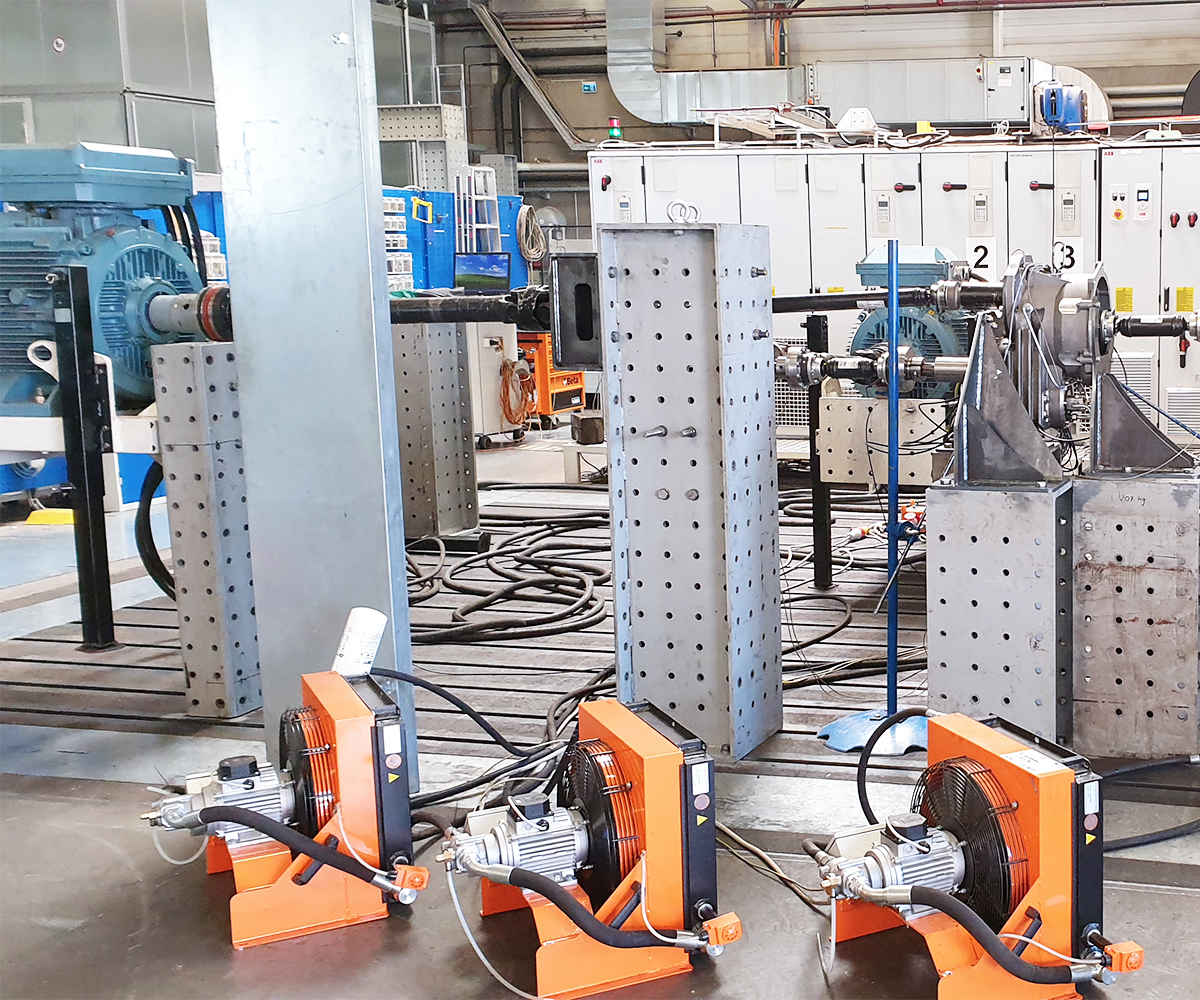

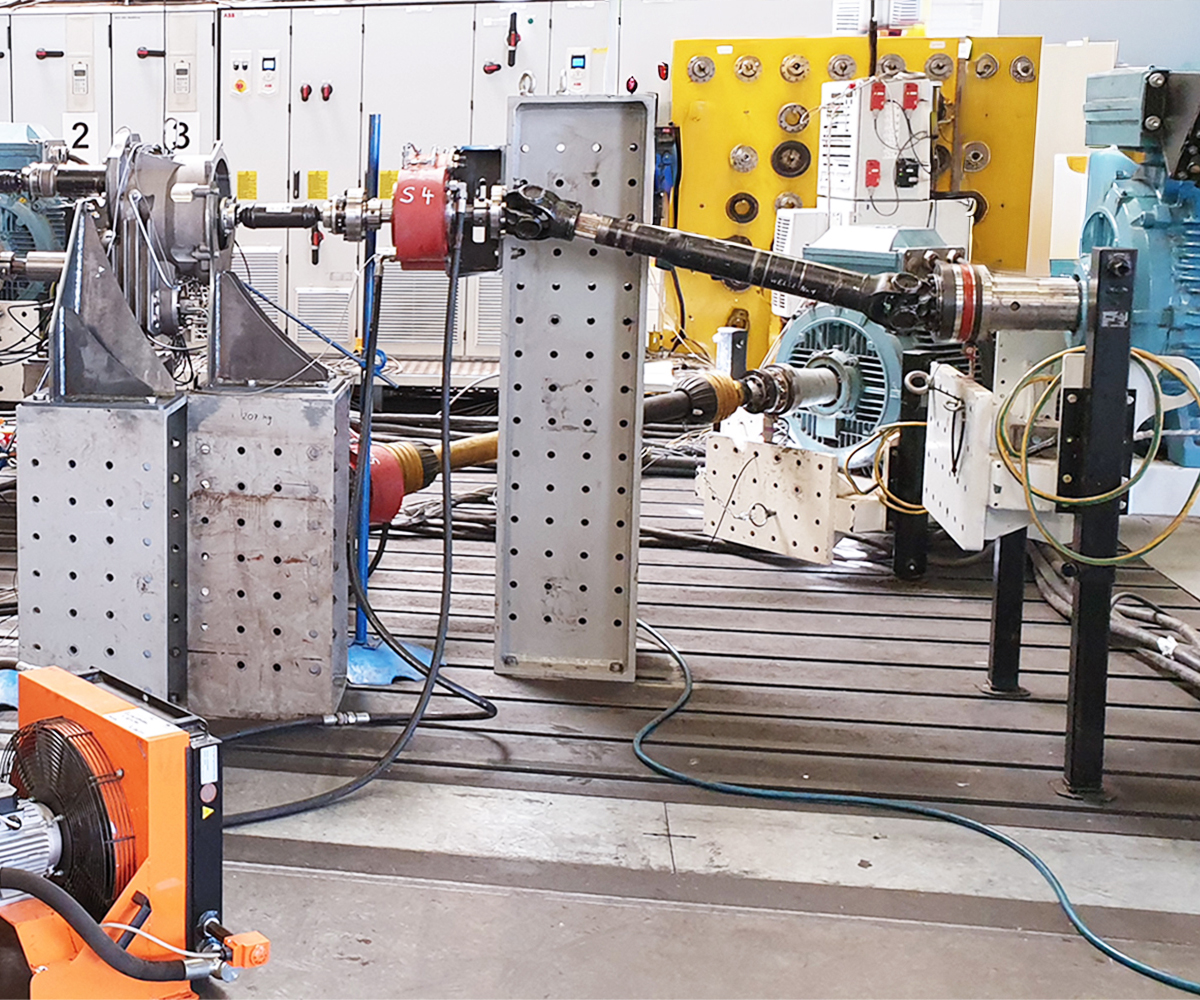

The drive test field consists of a 4,8 m x 8 m T-slot field for the variable test bench setup. There are 4 e-machines available with outputs between 75-355kW, which means that complex function tests up to 4m-drive tests can be carried out.

With the available gears and cardan shafts, there is a high degree of flexibility with regard to the test bench layout. All necessary devices and adapters are of course individually designed and manufactured at the customer’s request.

Applications / Technical Data
Further test methods

Drive Testing
Device

Drive Testing Device Icon

The drive test field consists of a 4,8 m x 8 m T-slot field for the variable test bench setup. There are 4 e-machines available with outputs between 75-355kW, which means that complex function tests up to 4m-drive tests can be carried out.

With the available gears and cardan shafts, there is a high degree of flexibility with regard to the test bench layout. All necessary devices and adapters are of course individually designed and manufactured at the customer’s request.

Applications / Technical Data
Further test methods
Contact

Possible applications

  • Testing the entire powertrain of machines
  • Generation of dynamic drive and braking loads
  • Drive testing in combination with mechanical stress
  • Recording of transmission characteristics
  • capacity: 75 kW | 150 kW | 250 kW | 355 kW
  • Noise Protection Cabin: 4 m x 6 m
  • max. torque: 8.000 Nm
  • various Gears and Shafts
